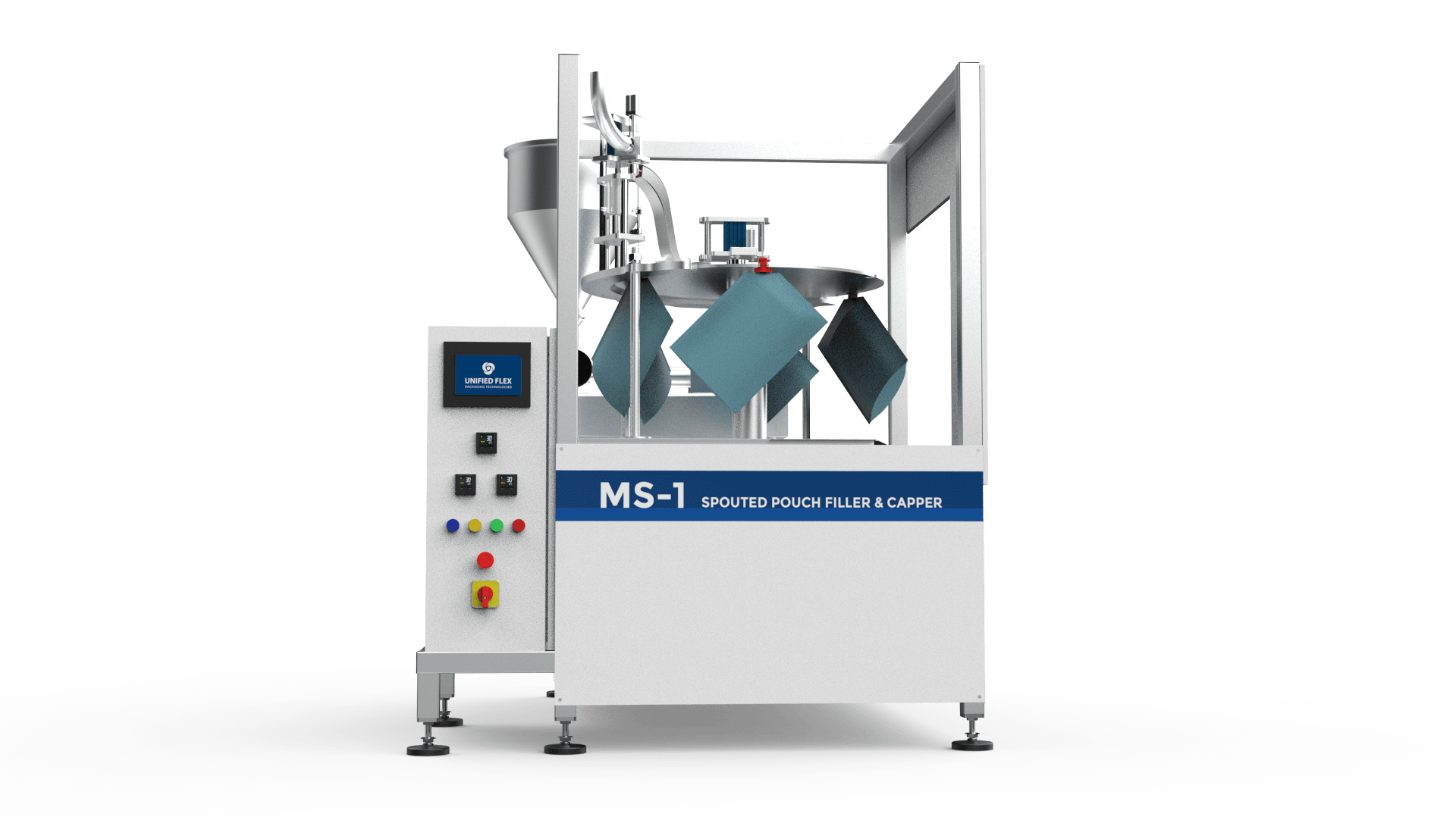

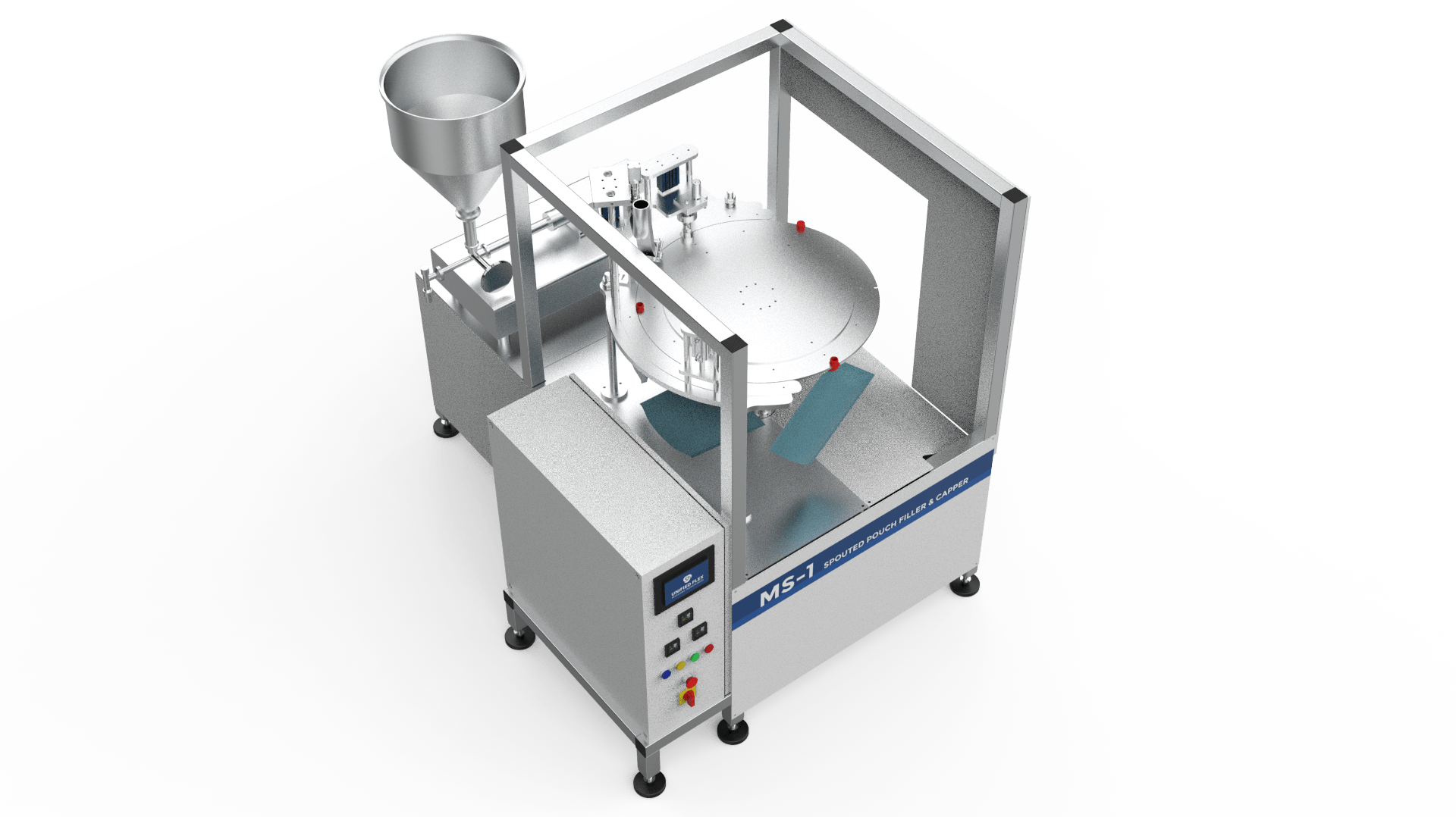

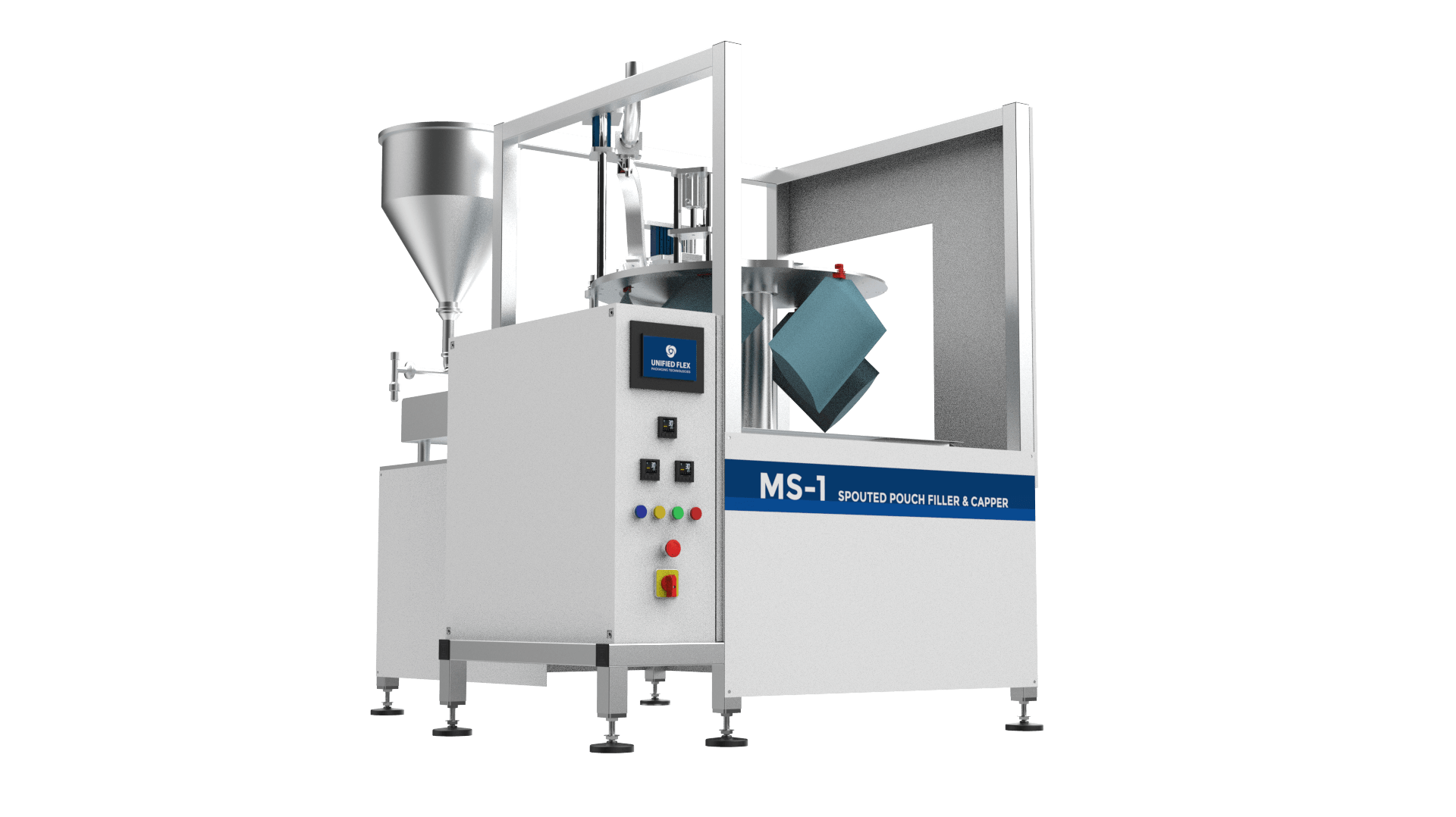

Spouted Pouch Filler & Capper MS-1

The Spouted Pouch Filler & Capper MS-1 is a versatile vertical form fill seal machine designed for single-pouch processing. It efficiently handles both viscous and free-flowing liquids, including those with particulates. This machine caters to a wide range of applications, from edible oils, dressings, and beverages to non-edible products like paints, soaps, and detergents. Its easy integration with piston fillers or positive displacement pumps makes the Spouted Pouch Filler & Capper MS-1 a reliable and adaptable solution for your liquid packaging needs.

To download the brochure or to receive the floor plans for the Spouted Pouch Filler & Capper MS-1, visit the ‘More Resources’ section below.

spout pouch filling and capping machine MS-1
12
pouches per
minute max.
50mL
min. fill
volume
2L
max. fill
volume

Equipment specifications are subject to change without notice. Check with our team for specifications based on your application.

Product Type

Liquid Icon White

Liquid

Parts + Services

We also proudly offer non-proprietary off the shelf parts for all of our machines and a wide variety of pre- and post- delivery services to all of our customers.

Spouted Pouch Filler & Capper MS-1

MACHINE
FEATURES

Bag style possibilities with this machine. Click on a desired bag style to learn more.

The Spouted Pouch Filler & Capper MS-1 boasts a range of features designed for efficiency, ease of use, and reliable performance:

  • Up to 12 cycles/minute
  • Easy tooling change over for various sizes of pouches
  • Heavy-duty rotary indexer for precise placement of pouches on every cycle
  • Operator loads caps and pouch onto table
  • Automatic fill and cap torquing of pouch in the rotary table
  • Independent capping head with torque out capability
  • Six station rotary system; loading pouch, air inflation, filling, cap placement, cap tightening, pouch exit
  • Stainless Steel Eject Chutes for easy pouch collection
  • Stainless Steel frame construction with continuous weld
  • 10” enclosed HMI with easy menu interface for various operations
  • Omron Motion Controller PLC for synchronous and smooth motion
  • Click-to-order non-proprietary parts
  • Pouch detection capabilities: ‘No Pouch - No Fill’ recognition
  • Integrated piston/pump depending on the product

Enhance the functionality of your Spouted Pouch Filler & Capper MS-1 with these optional features:

• Lot Code / Date Code Printers
• Take Away Conveyor

Ensure seamless integration into your production line with the Spouted Pouch Filler & Capper MS-1's technical specifications:

Standard technical data: Spouted Pouch Filler & Capper MS-1
Speed: up to 12 cycles/minute
Number of fillers: 1
Power input: 220 Volt, Single phase, 60 Hz, 20 Amp
Compressed air pressure: 90 PSI
Power consumption: 4 KW
Electronic Controls: PLC
Human Machine Interface (HMI): 10" Color Touch Screen
Max. pouch volume: 2000ml
Min. pouch volume: 50ml

check weigher (2)

Check Weighers

outfeed conveyor (1)

Infeed / Outfeed Conveyors

PLATFORM MEZZANINE

Mezzanine / Platforms

Piston Filler

Piston Filler

in line printer (2)

Printers

transfer pump

Product Transfer Pumps

Bag Styles

Bag style possibilities with this machine. Click on a desired bag style to learn more.

The Spouted Pouch Filler & Capper MS-1 boasts a range of features designed for efficiency, ease of use, and reliable performance:

  • Up to 12 cycles/minute
  • Easy tooling change over for various sizes of pouches
  • Heavy-duty rotary indexer for precise placement of pouches on every cycle
  • Operator loads caps and pouch onto table
  • Automatic fill and cap torquing of pouch in the rotary table
  • Independent capping head with torque out capability
  • Six station rotary system; loading pouch, air inflation, filling, cap placement, cap tightening, pouch exit
  • Stainless Steel Eject Chutes for easy pouch collection
  • Stainless Steel frame construction with continuous weld
  • 10” enclosed HMI with easy menu interface for various operations
  • Omron Motion Controller PLC for synchronous and smooth motion
  • Click-to-order non-proprietary parts
  • Pouch detection capabilities: ‘No Pouch - No Fill’ recognition
  • Integrated piston/pump depending on the product

Enhance the functionality of your Spouted Pouch Filler & Capper MS-1 with these optional features:

• Lot Code / Date Code Printers
• Take Away Conveyor

Ensure seamless integration into your production line with the Spouted Pouch Filler & Capper MS-1's technical specifications:

Standard technical data: Spouted Pouch Filler & Capper MS-1
Speed: up to 12 cycles/minute
Number of fillers: 1
Power input: 220 Volt, Single phase, 60 Hz, 20 Amp
Compressed air pressure: 90 PSI
Power consumption: 4 KW
Electronic Controls: PLC
Human Machine Interface (HMI): 10" Color Touch Screen
Max. pouch volume: 2000ml
Min. pouch volume: 50ml
