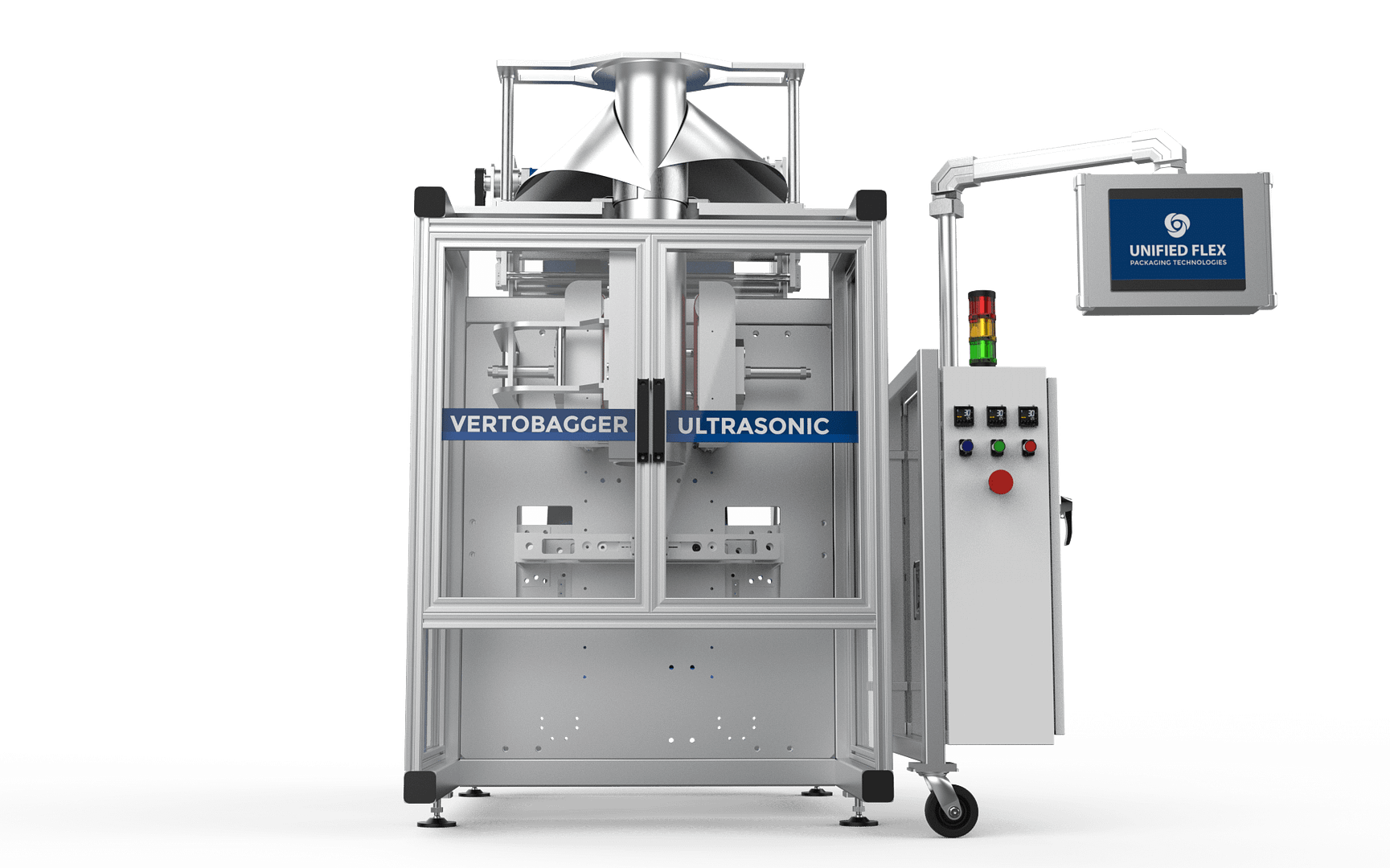

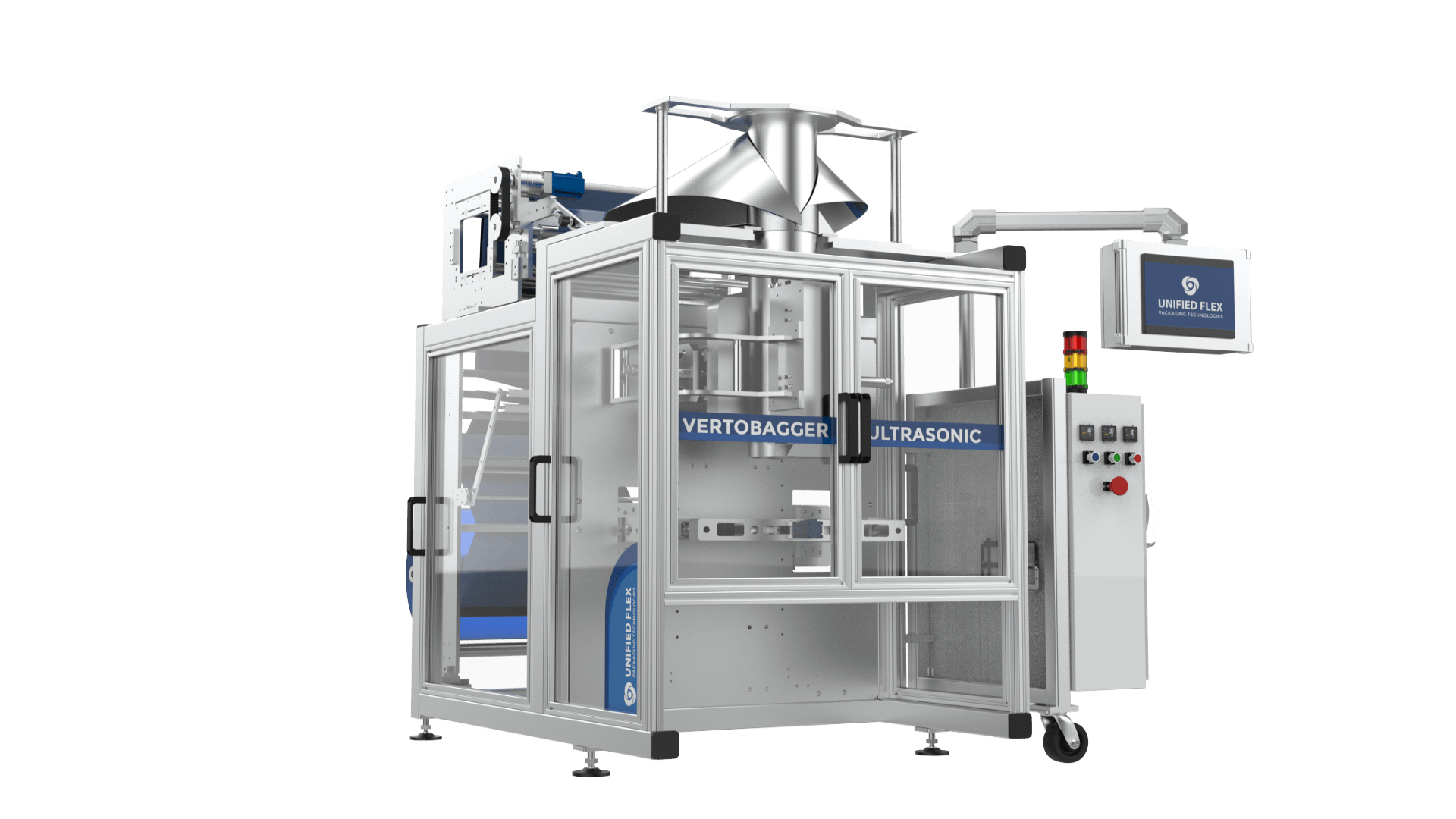

VFFS Vertobagger 2.0 Ultrasonic

The VFFS Vertobagger 2.0 Ultrasonic is a high-speed Vertical Form Fill Seal machine. Vertical and horizontal seals are made with an Ultrasonic sealing apparatus. Ultrasonic sealers can seal through a food product, and they can eliminate contamination in the sealing area, increasing efficiency by reducing the reject rate. Ultrasonic seals take up less sealing space which can result in cost reduction of packaging material. The VFFS Vertobagger 2.0 Ultrasonic bagging machine can be used for high-speed bagging application of products like liquids, produce, cheese, and powdered products. See all markets.

To download the brochure or to receive the floor plans for the VFFS Vertobagger 2.0 Ultrasonic, visit the ‘More Resources’ section below.

Vertobagger 2.0 Ultrasonic vffs packaging machine
150
bags per
minute max.
13"
maximum
bag width
15"
maximum
bag length

Equipment specifications are subject to change without notice. Check with our team for specifications based on your application.

Product Type

Liquid Icon White

Liquid

Powder Icon White

Powder

Solid Icon White

Solid

Parts + Services

We also proudly offer non-proprietary off the shelf parts for all of our machines and a wide variety of pre- and post- delivery services to all of our customers.

VFFS Vertobagger 2.0 Ultrasonic

MACHINE
FEATURES

Bag style possibilities with this machine. Click on a desired bag style to learn more.

This packaging machine boasts a range of features designed for efficiency, ease of use, and reliable performance:

  • Vertical form fill seal machine capable of high-speed production with GREEN (Biodegradable) film structures
  • Most advanced Energy efficient bagging machine in the industry
  • Intelligent, self-adapting, easy to use automatic bagging machine
  • Fast return on investment
  • Robust – built for life – materials engineered for long life
  • 8 axis motion controller – Ether- CAT technology
  • 6 servo motors digitally geared in synchronous motion
  • 10” Easy to use Touch Screen
  • Photo sensor for print mark registration
  • Precise bag length measure with Encoder
  • Quick and tool-less forming collar assembly change over
  • Side loading – quick film change over
  • Self-aligning forming collar assembly
  • Nip roller – maintains film tension and helps run thin films
  • Band sealer back seal
  • Heavy duty horizontal seal assembly for higher pressure and longer service life
  • Self-aligning pulling belts
  • 360-degree access for maintenance
  • Quick and easy belt change overs
  • Click-to-order non-proprietary parts

Enhance the functionality of your VFFS Vertobagger 2.0 Ultrasonic with these optional features:

• Nitrogen gas flush
• Forming tube exhaust
• Thermal transfer printer
• Product catcher
• Bag unloader
• Take away conveyor
• Delta Robot bag pick and place
• Indexing conveyor
• Lazy Susan bag collector

Ensure seamless integration into your production line with the VFFS Vertobagger 2.0 Ultrasonic's technical specifications:

Standard technical data: VFFS Vertobagger 2.0 Ultrasonic

Maximum web width: 27”

Machine height: 2007mm / 79″

Machine width: 1575mm / 62″

Machine length: 2438mm / 96″

Horizontal jaw activation: Servo motor

Pulling belts: Servo motor

Electronic control: Omron PLC

Human machine interface (HMI): 10" Touch Panel

Electrical power supply: 220V / Single phase/ 60 Hz / 30 amp

Power consumption: 6 KW

Compressed air volume: 20 CFM

Air pressure: 80 psi

AUGER FILLER

Auger Filler

check weigher (2)

Check Weighers

outfeed conveyor (1)

Infeed / Outfeed Conveyors

PLATFORM MEZZANINE

Mezzanine / Platforms

ORION 14 HEAD SCALE

Multi head Combination Weigher

Piston Filler

Piston Filler

in line printer (2)

Printers

transfer pump

Product Transfer Pumps

tablet counter

Tablet Counters

VOLUMMETRIC FILLER

Volumetric Filler

Bag Styles

Bag style possibilities with this machine. Click on a desired bag style to learn more.

This packaging machine boasts a range of features designed for efficiency, ease of use, and reliable performance:

  • Vertical form fill seal machine capable of high-speed production with GREEN (Biodegradable) film structures
  • Most advanced Energy efficient bagging machine in the industry
  • Intelligent, self-adapting, easy to use automatic bagging machine
  • Fast return on investment
  • Robust – built for life – materials engineered for long life
  • 8 axis motion controller – Ether- CAT technology
  • 6 servo motors digitally geared in synchronous motion
  • 10” Easy to use Touch Screen
  • Photo sensor for print mark registration
  • Precise bag length measure with Encoder
  • Quick and tool-less forming collar assembly change over
  • Side loading – quick film change over
  • Self-aligning forming collar assembly
  • Nip roller – maintains film tension and helps run thin films
  • Band sealer back seal
  • Heavy duty horizontal seal assembly for higher pressure and longer service life
  • Self-aligning pulling belts
  • 360-degree access for maintenance
  • Quick and easy belt change overs
  • Click-to-order non-proprietary parts

Enhance the functionality of your VFFS Vertobagger 2.0 Ultrasonic with these optional features:

• Nitrogen gas flush
• Forming tube exhaust
• Thermal transfer printer
• Product catcher
• Bag unloader
• Take away conveyor
• Delta Robot bag pick and place
• Indexing conveyor
• Lazy Susan bag collector

Ensure seamless integration into your production line with the VFFS Vertobagger 2.0 Ultrasonic's technical specifications:

Standard technical data: VFFS Vertobagger 2.0 Ultrasonic

Maximum web width: 27”

Machine height: 2007mm / 79″

Machine width: 1575mm / 62″

Machine length: 2438mm / 96″

Horizontal jaw activation: Servo motor

Pulling belts: Servo motor

Electronic control: Omron PLC

Human machine interface (HMI): 10" Touch Panel

Electrical power supply: 220V / Single phase/ 60 Hz / 30 amp

Power consumption: 6 KW

Compressed air volume: 20 CFM

Air pressure: 80 psi

AUGER FILLER

Auger Filler

check weigher (2)

Check Weighers

outfeed conveyor (1)

Infeed / Outfeed Conveyors

PLATFORM MEZZANINE

Mezzanine / Platforms

ORION 14 HEAD SCALE

Multi head Combination Weigher

Piston Filler

Piston Filler

in line printer (2)

Printers

transfer pump

Product Transfer Pumps

tablet counter

Tablet Counters

VOLUMMETRIC FILLER

Volumetric Filler
