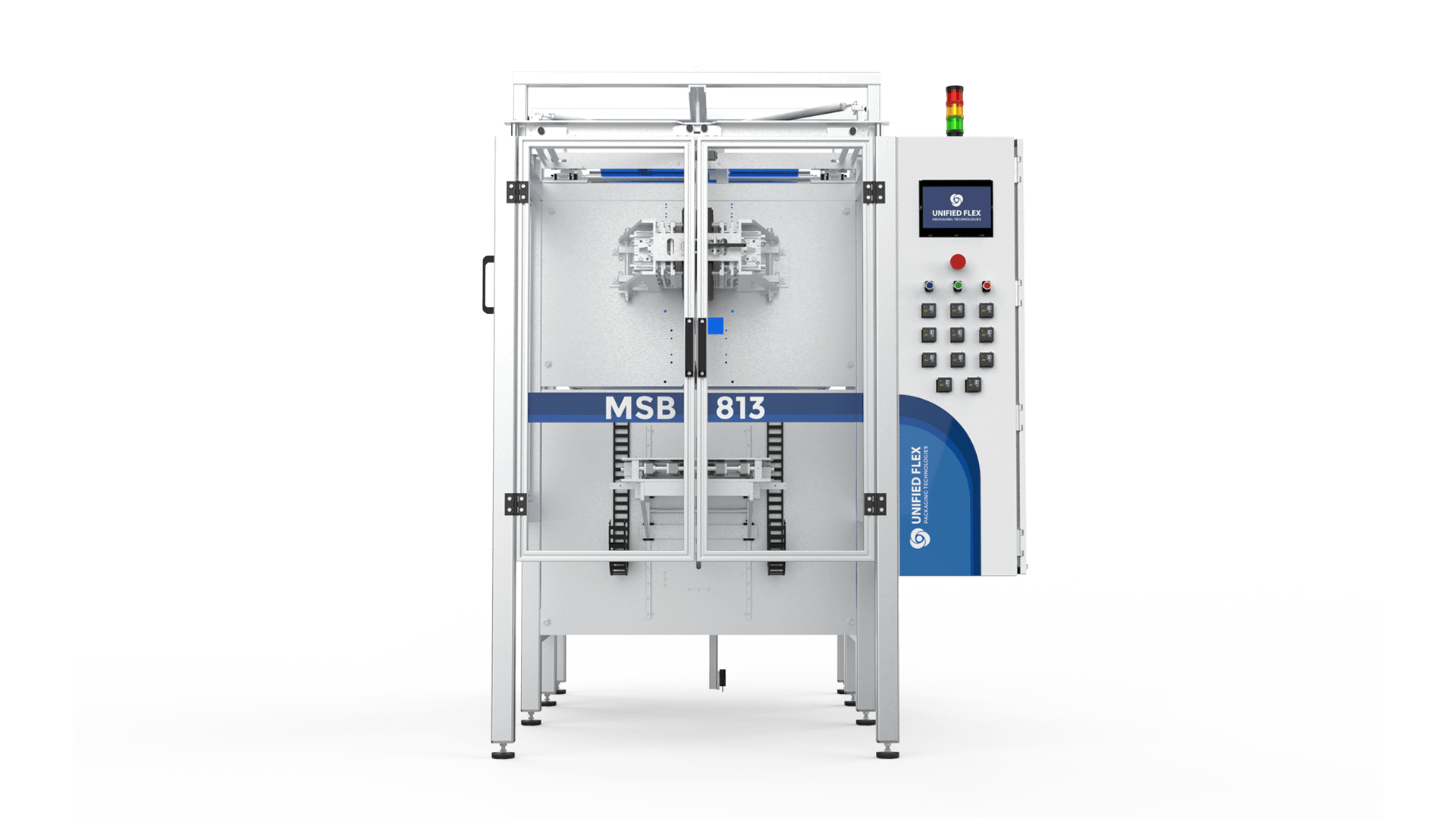

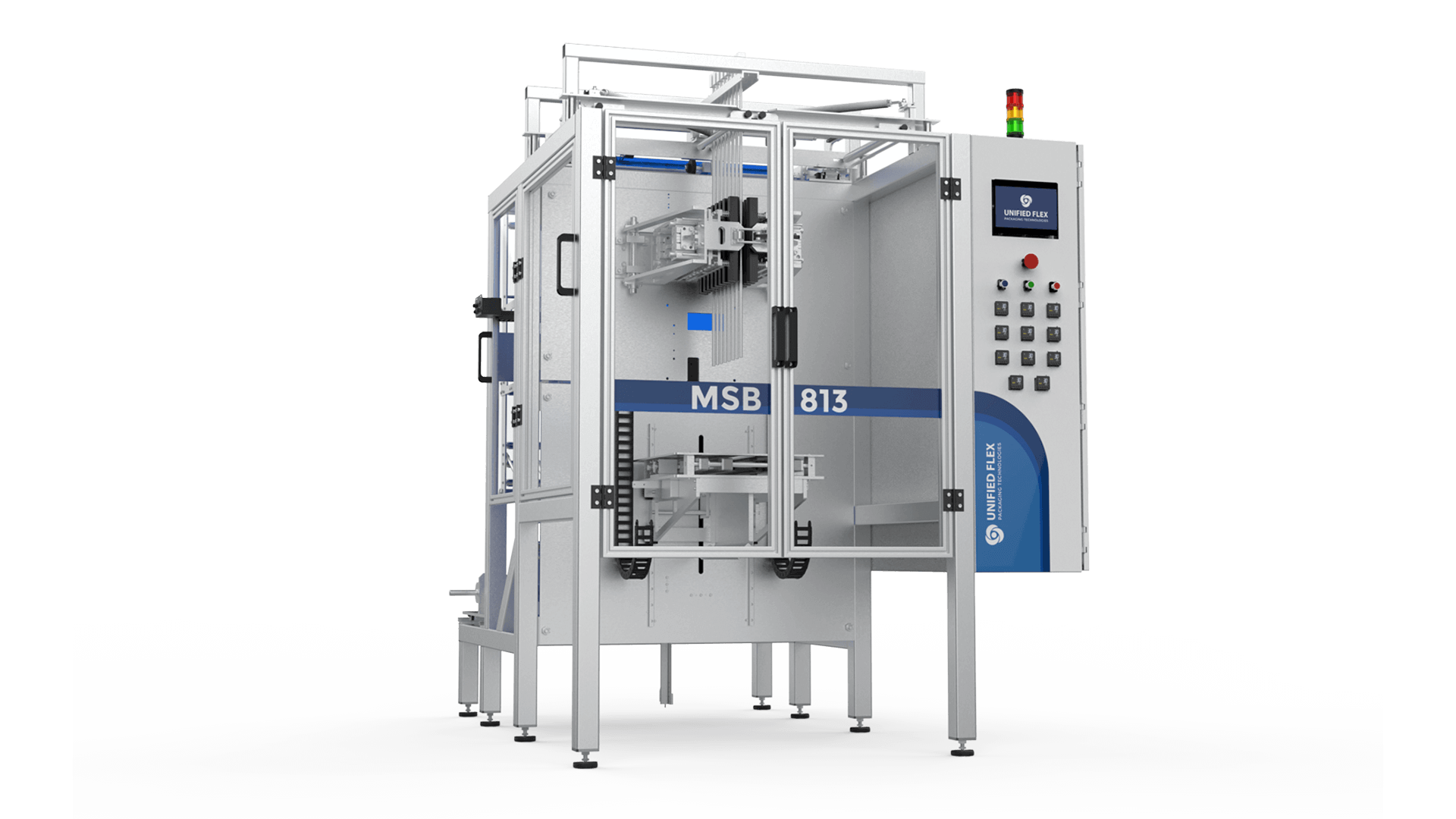

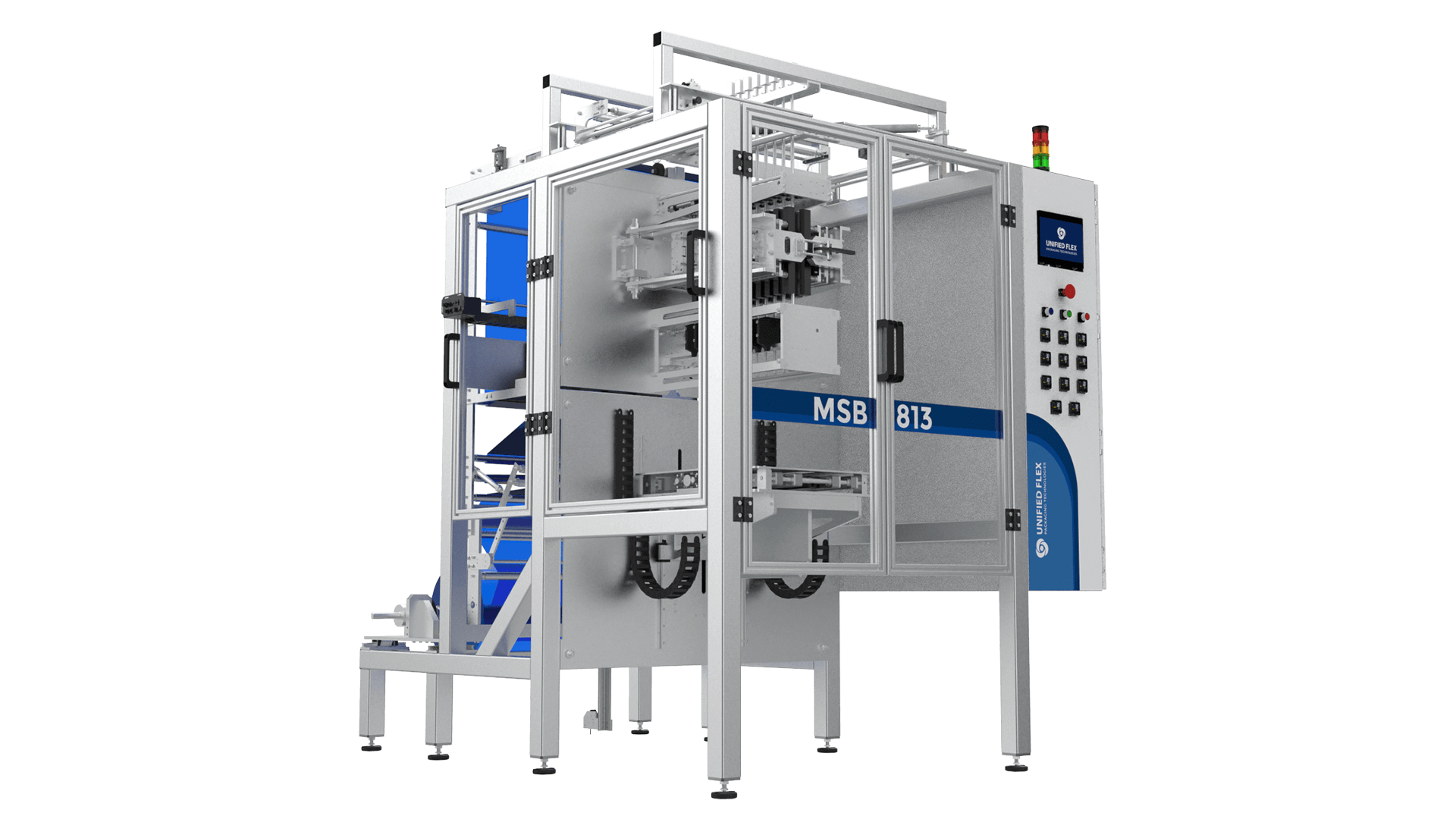

Multilane Sachet Bagger – MSB 813mm

The Multilane Sachet Bagger – MSB 813mm is designed to be a modular and flexible automatic vertical form fill seal machine (VFFS) with a clean and simple design. Ease of use, ease of maintenance, and smooth operation are the main features of this machine. Robust and precise assembly makes this machine an ideal choice for packaging sachets of various sizes. The Multilane Sachet Bagger – 813mm can accommodate up to 20 lanes to form sachet pouches. It is customized for Auger Fillers (Powders), Piston Fillers (Liquids), or Volumetric Fillers (Granular). This sachet bagging machine can be used for packaging a wide variety of products like powders, particulate materials, coffee, drink mixes, liquids or gels, and more. Maximum web width can be up to 32 inches wide. See all markets.

To download the brochure or to receive the floor plans for the Multilane Sachet Bagger – MSB 813mm, visit the ‘More Resources’ section below.

Multi lane sachet packaging machine - MSB 813mm
1000
sachets per
minute max.
8”
maximum
sachet width
12”
maximum
sachet length

Equipment specifications are subject to change without notice. Check with our team for specifications based on your application.

Product Type

Liquid Icon White

Liquid

Powder Icon White

Powder

Solid Icon White

Solid

Parts + Services

We also proudly offer non-proprietary off the shelf parts for all of our machines and a wide variety of pre- and post- delivery services to all of our customers.

Multilane Sachet Bagger – MSB 813mm

MACHINE
FEATURES

Bag style possibilities with this machine. Click on a desired bag style to learn more.

The Multilane Sachet Bagger - MSB 813mm boasts a range of features designed for efficiency, ease of use, and reliable performance:

  • 32 inch maximum web width, up to 20 lane configuration on a 0.75 inch wide sachet pack
  • Optional lanes can be added
  • State of the art Omron Sysmac machine controller to SYNC Form, Fill and Seal motion of the bagger in a single Digital
    Gear Motion
  • 10" HMI Touch Screen
  • #304 Stainless-Steel heavy-duty frame construction with corrosion resistant polish
  • Intermittent motion film pull and seal function by horizontal jaws
  •  Servo Driven Y axis movement of the horizontal sealing jaws
  • Pneumatic Vertical Sealing Jaws - 12 inches long
  • Set of 7 spring loaded rotary slitting blades
  • 90 degree opening of Vertical Sealing Jaws for easy cleaning
  • Pneumatic horizontal Seal and Cut motion
  • Pneumatically locked roll stock holding mandrel
  • #304 Stainless Steel filling and forming tubes
  • Pneumatic film unwind
  • Click-to-order non-proprietary electrical and pneumatic components
  • Compatible with various Inline Thermal Printers
  • 220 Volt, 3 phase, 60 Hz, 35 amp

Enhance the functionality of your Multilane Sachet Bagger - MSB 813mm with these optional features:

  • Take away conveyor
  • Lazy Susan bag collector
  • Heated hopper mixing system
  • Compatible with various Inline Thermal Printers

Ensure seamless integration into your production line with the Multilane Sachet Bagger - MSB 813mm's technical specifications:

Standard technical data: Multilane Sachet Bagger - MSB 813mm (2 to 20 Lane Bagger)

Maximum web width: 32”

Machine height: 97”

Machine width: 72”

Machine length: 89”

Horizontal jaw activation: Pneumatic

Film Drive: Servo motor

Slitting Knives: Mechanical

Electronic control: Omron PLC

Human machine interface (HMI): 10" Touch Panel

Electrical power supply: 220 Volt, 3 phase, 60 HZ, 35 amp

Power consumption: 12 KW

Compressed air volume: 20 CFM

Air pressure: 80 psi

Film Unwind: Motorized







check weigher (2)

Check Weighers

outfeed conveyor (1)

Infeed / Outfeed Conveyors

PLATFORM MEZZANINE

Mezzanine / Platforms

MULTILANE AUGER FILLER

Multilane Auger Filler

MULTILANE PISTON FILLER

Multilane Piston Filler

MULTILANE VOLUMETRIC FILLER

Multilane Volumetric Filler

in line printer (2)

Printers

transfer pump

Product Transfer Pumps

tablet counter

Tablet Counters
